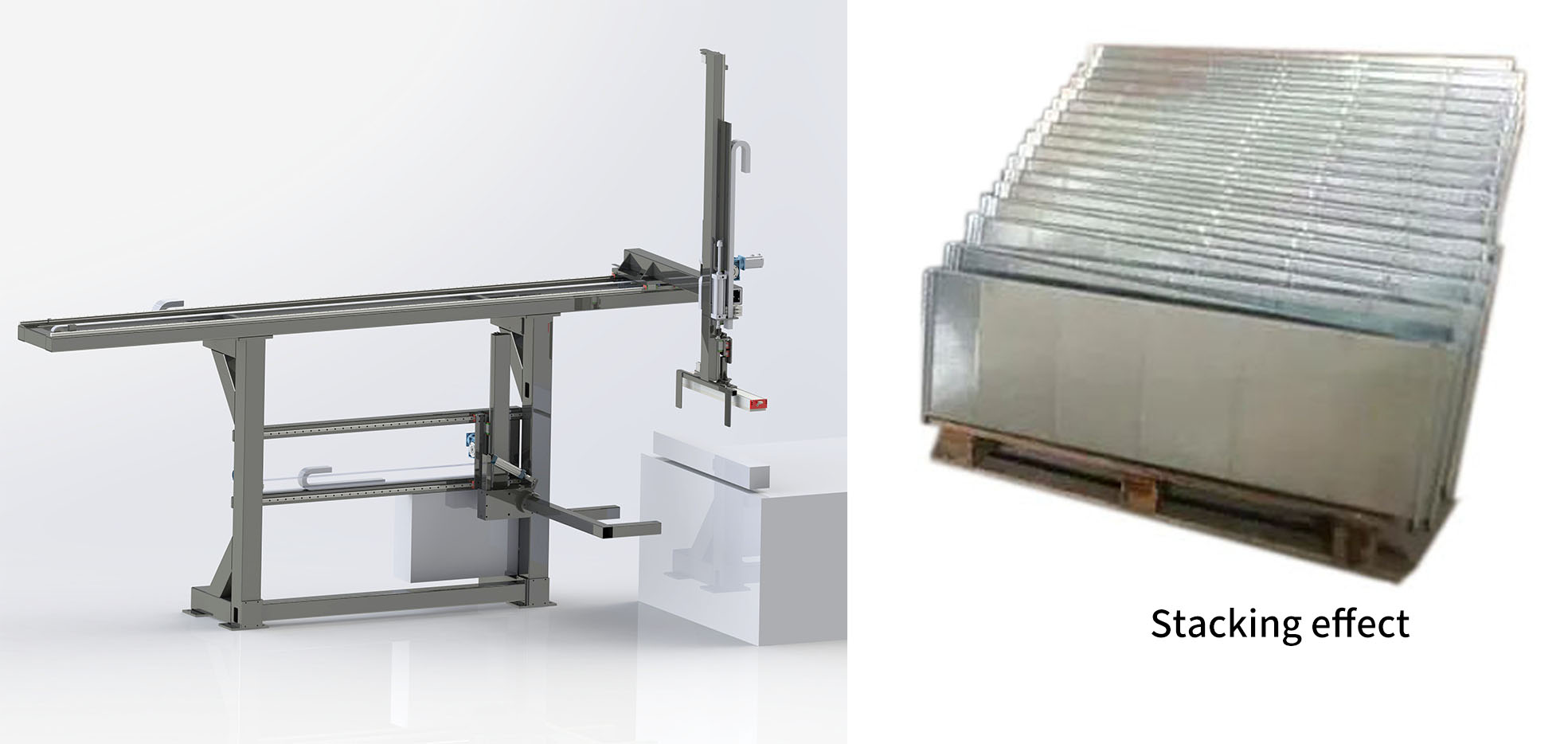

Machine Introduction

       This machine is specially developed for air duct stacking, which reduces labor intensity and labor demand.

       This device also has functions such as dragging, positioning, gripping, lifting, and staggered stacking of air ducts. After pulling out the air duct, stack it nearby. According to the stacking needs, support customization of stacking positions, saving stacking space. The stacking of air ducts allows for material to be picked up from the ends and sides, facilitating manual operations. Adopting PLC intelligent control, simple operation and stable performance.

Machine characteristics

(1) Wide compatibility range, compatible with L-shaped ducts, flat ducts, and mouth shaped ducts at the same time.

(2) Compact structure with small footprint.

(3) Control operation panel, one click start, easy to learn operation.

(4) Using three sets of large caliber vacuum suction cups, with high suction force and stable gripping.

Machine functions

1. Automatic feeding, automatic positioning, automatic grabbing, and automatic interleaving. High stacking efficiency and stable stacking shape.

2. Suitable for stacking air ducts, including different specifications of stacking such as L-shaped ducts, flat ducts, and mouth shaped ducts.

Machine parameters

Machine configuration
